00112ET3E56CFL-S WEG

Name: 00112ET3E56CFL-S WEG
Brand: WEG
SKU: 00112ET3E56CFL-S WEG
Price: 528.00 USD
Availability: OutOfStock

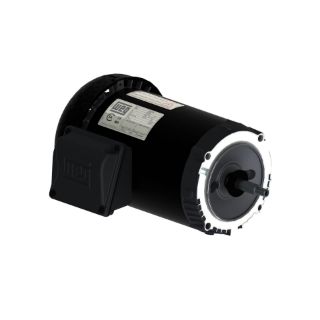

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

00112ET3E56CFL-S

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$528.00 / EA

Description

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 112705163
Motion Industries - 06976079

Description

WEG AC Motor, General Purpose AC Motors Application, 1 hp, 230/460 VAC, 1.6 A, 60 Hz Frequency, 3 ph ph, 1200 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 1.15 Service Factor, Ball Bearing, 4.52 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 13.504 in L Dimensions

Application

General Purpose Applications

Features

Aluminum endshields
Cast iron flanges for improved strength
Internal bolts, giving a clean surface to the motor
Double shielded ball bearings
Robust design
IP55 rating

Specifications

Amperage Rating:	1.6 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	13.504 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face Footless
Phase:	3
Service Factor:	1.15
Speed:	1200 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	4.52 ft-lb
Voltage Rating:	230/460 VAC
