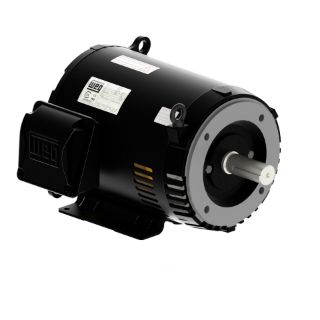

Picture of 00118OT3E143TC-S WEG
Actual Product May Vary From Image

00118OT3E143TC-S WEG

WEG 00118OT3E143TC-S Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 1 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 143-5TC Frame, 1760 rpm Speed, C-Face Footed Mount
Manufacturer: WEG
Manufacturer part number: 00118OT3E143TC-S
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$424.00

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110950770
Motion Industries - 06142761

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 rolled steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and NEMA Premium® efficiency, these versatile motors provide torque and durability for several applications.
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 1 hp, 208/230/460 VAC, 3.34 to 3.02/1.51 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Open Drip-Proof Enclosure, 143-5TC Frame, 7/8 in Dia x 2-1/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 2.94 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 11.181 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

  • Aluminum endshields
  • Cast iron flanges for improved strength
  • Internal bolts, giving a clean surface to the motor
  • Double shielded ball bearings
  • Robust design
  • IP55 rating

Specifications

Amperage Rating:3.34 to 3.02/1.51 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Dimensions:11.181 in L
Enclosure Type:Open Drip-Proof
Frame:143-5TC
Frequency Rating:60 Hz
Horsepower:1 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:C-Face Footed
Number of Speeds:1
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.15
Shaft Size:7/8 in Dia x 2-1/4 in L
Speed:1760 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:2.94 ft-lb
Voltage Rating:208/230/460 VAC
