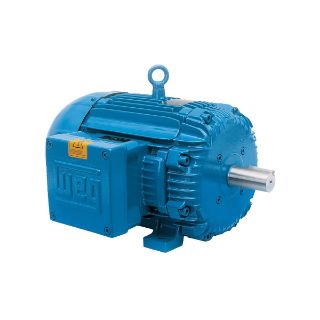

00212XT3H184T WEG

W21Xd is an explosion proof motor especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/zone 1. All ratings meet NEMA Premium® efficiency. Motors are certified for VFD service.

WEG AC Motor, Continuous-Duty, Explosion Proof AC Motors Special Features, 2 hp, 575 VAC, 2.5 A, 60 Hz Frequency, 3 ph ph, 1165 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 8.89 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 15.862 in L Dimensions
