00218ET3E145TC-W22 WEG

Name: 00218ET3E145TC-W22 WEG
Brand: WEG
SKU: 00218ET3E145TC-W22 WEG
Price: 640.00 USD
Availability: OutOfStock

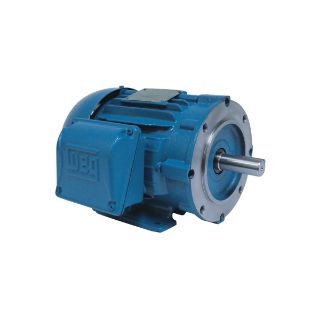

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

00218ET3E145TC-W22

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$640.00 / EA

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101400052
Motion Industries - 04656453

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 2 hp, 208/230/460 VAC, 5.85 to 5.52/2.76 A, 60 Hz Frequency, 3 ph ph, 1755 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143-5TC Frame, 7/8 in Dia x 2-1/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 5.90 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 13.358 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

Regreasable bearings
Gasketed conduit box
All cast iron construction, including terminal box and fan cover
IP55 rating
Corrosion proof drains

Specifications

Amperage Rating:	5.85 to 5.52/2.76 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Dimensions:	13.358 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	143-5TC
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face Footed
Number of Speeds:	1
Phase:	3
Rotation:	CW/CCW
Service Factor:	1.25
Shaft Size:	7/8 in Dia x 2-1/4 in L
Speed:	1755 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	5.90 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	208/230/460 VAC
