Actual Product May Vary From Image

00218ET3E56CFL-S WEG

Name: 00218ET3E56CFL-S WEG
Brand: WEG
SKU: 00218ET3E56CFL-S WEG
Price: 506.00 USD
Availability: OutOfStock

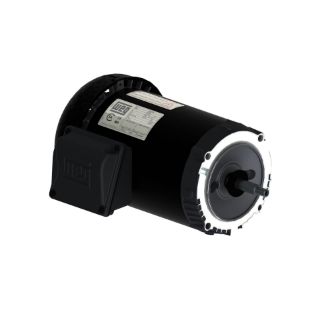

WEG 00218ET3E56CFL-S AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1800 rpm Speed, C-Face Footless Mount

Manufacturer: WEG

Manufacturer part number: 00218ET3E56CFL-S

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$506.00

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 112706725
Motion Industries - 06976136

Description

WEG AC Motor, General Purpose AC Motors Application, 2 hp, 230/460 VAC, 2.7 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 1.15 Service Factor, Ball Bearing, 5.94 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 13.898 in L Dimensions

Application

General Purpose Applications

Features

Aluminum endshields
Cast iron flanges for improved strength
Internal bolts, giving a clean surface to the motor
Double shielded ball bearings
Robust design
IP55 rating

Specifications

Amperage Rating:	2.7 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	13.898 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face Footless
Phase:	3 ph
Service Factor:	1.15
Speed:	1800 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	5.94 ft-lb
Voltage Rating:	230/460 VAC
