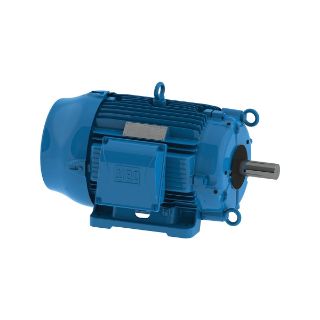

Picture of 00218ET3ECT145TF1-W2 WEG
Actual Product May Vary From Image

00218ET3ECT145TF1-W2 WEG

WEG 00218ET3ECT145TF1-W2 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 143/5T Frame, 1755 rpm Speed, Footed Mount
Manufacturer: WEG
Manufacturer part number: 00218ET3ECT145TF1-W2
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$752.00

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 112708917
Motion Industries - 04863308

Description

WEG's cooling tower motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG's W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.
WEG AC Motor, Continuous-Duty, Air Handling Motors, Chiller/Cooling Tower Motors Application, 2 hp, 208/230/460 VAC, 5.85 to 5.52/2.76 A, 60 Hz Frequency, 3 ph ph, 1755 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 143/5T Frame, 7/8 in Dia x 2-1/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 5.90 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 13.358 in L Dimensions

Application

Cooling Tower Applications

Standards

NEMA Premium®

Features

  • Stainless steel nameplate laser etched with high contrast background
  • Double sealed bearings
  • Double impregnation and bake
  • Internally and externally epoxy painted
  • High starting torque
  • IP55 rating

Specifications

Amperage Rating:5.85 to 5.52/2.76 A
Application Type:Air Handling Motors, Chiller/Cooling Tower Motors
Bearing Type:Ball
Dimensions:13.358 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:143/5T
Frequency Rating:60 Hz
Horsepower:2 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Footed
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.25
Shaft Size:7/8 in Dia x 2-1/4 in L
Speed:1755 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:5.90 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:208/230/460 VAC
