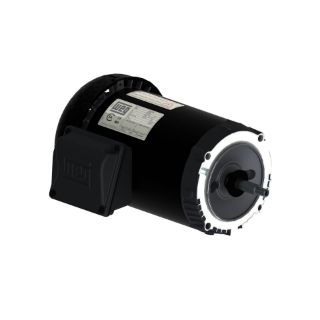

Actual Product May Vary From Image

00218ET3ER145TC-S WEG

Name: 00218ET3ER145TC-S WEG
Brand: WEG
SKU: 00218ET3ER145TC-S WEG
Price: 558.00 USD
Availability: InStock

WEG 00218ET3ER145TC-S Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 143-5TC Frame, 1745 rpm Speed, C-Face Footless Mount

Manufacturer: WEG

Manufacturer part number: 00218ET3ER145TC-S

Availability: 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$558.00

Qty:

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110950962
Motion Industries - 06142919

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 2 hp, 208/230/460 VAC, 6.02 to 5.44/2.72 A, 60 Hz Frequency, 3 ph ph, 1745 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 143-5TC Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 5.94 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 13.976 in L Dimensions

Application

General Purpose Applications

Features

Aluminum endshields
Cast iron flanges for improved strength
Internal bolts, giving a clean surface to the motor
Double shielded ball bearings
Robust design
IP55 rating

Specifications

Amperage Rating:	6.02 to 5.44/2.72 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	13.976 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	143-5TC
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face Footless
Phase:	3
Rotation:	CW/CCW
Service Factor:	1.15
Speed:	1745 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	5.94 ft-lb
Voltage Rating:	208/230/460 VAC
