003004 DOD

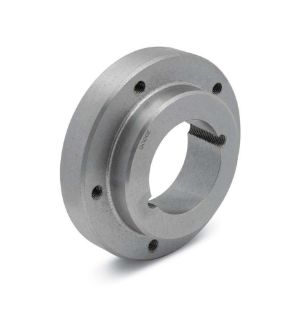

Picture of 003004 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
003004
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
$185.52 / EA

Description

Specifications

ATEX Certificate:No
Bore Diameter (Maximum):2.6875
Bore Diameter (Maximum) (Unit):INCH
Bore Diameter (Minimum):0.5000
Bore Diameter (Minimum) (Unit):INCH
Bore Length:1.7500
Bore Length (Unit):INCH
Bushing Size:2517
Bushing Type:Taper-Lock
Coupling Component:Flange
Coupling Size:R25
Coupling Style:Rigid
Coupling Type:Metallic
Flange Material:Cast Iron
Horsepower Per 100 Rat:29.2000
Horsepower Per 100 Rat (Unit):HORSEPOWER
Lubrication:None
Maximum Speed:3545
Maximum Speed (Unit):RPM
Maximum Temperature Rating:285.0000
Maximum Temperature Rating (Unit):FAHRENHEIT
Minimum Temperature Rating:-100.0000
Minimum Temperature Rating (Unit):FAHRENHEIT
Number of Bolts:5
Rated Torque:18400.0000
Rated Torque (Unit):INCH_POUND
Shaft Attachment:Bushed
Shaft Spacing:Close Coupled
Tightening Torque:900
Tightening Torque (Unit):INCH_POUND

Resources

Tech BulletinInstallation
