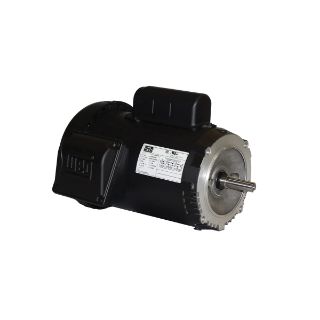

00318ES1ER184TC WEG

The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for severe duty use.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 3 hp, 208/230/460 VAC, 14.7 to 13.6/6.8 A, 60 Hz Frequency, 1 ph ph, 1765 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184TC Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 8.88 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 17.05 in L Dimensions
