Actual Product May Vary From Image

00318ET3ER182TC-W22 WEG

Name: 00318ET3ER182TC-W22 WEG
Brand: WEG
SKU: 00318ET3ER182TC-W22 WEG
Price: 721.00 USD
Availability: InStock

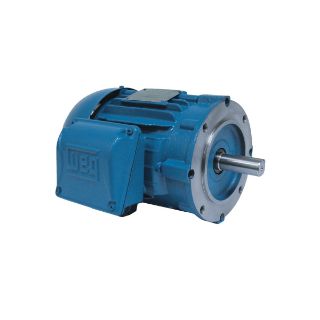

WEG 00318ET3ER182TC-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 182TC Frame, 1760 rpm Speed, C-Face Footless Mount

Manufacturer: WEG

Manufacturer part number: 00318ET3ER182TC-W22

Availability: 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$721.00

Qty:

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 111371301
Motion Industries - 04395702

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 3 hp, 208/230/460 VAC, 8.65 to 7.82/3.91 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 182TC Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 8.83 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 16.197 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

Regreasable bearings
Gasketed conduit box
All cast iron construction, including terminal box and fan cover
IP55 rating
Corrosion proof drains

Specifications

Amperage Rating:	8.65 to 7.82/3.91 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Dimensions:	16.197 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182TC
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face Footless
Phase:	3
Rotation:	CW/CCW
Service Factor:	1.25
Speed:	1760 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	8.83 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	208/230/460 VAC
