00318XT3E182T WEG

Name: 00318XT3E182T WEG
Brand: WEG
SKU: 00318XT3E182T WEG
Price: 1,208.00 USD
Availability: OutOfStock

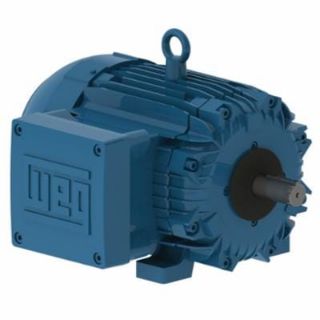

WEG 00318XT3E182T Hazardous Location AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 182T Frame, 1760 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 00318XT3E182T

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,208.00

Qty:

Product Details

Brand Name

WEG

Type

Hazardous Location

Alternate Supplier #

Applied Industrial Technologies - 101379708
Motion Industries - 04488293

Description

WEG AC Motor, Hazardous Location, Elevator Motors, Fan & Blower Motors Application, 4-Pole, Direct On Line Starting Method, Explosion Proof AC Motors Special Features, 3 hp, 208/230/460 VAC, 8.65 to 7.82/3.91 A, 60 Hz Frequency, 3 ph, 1760 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 182T Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, CW/CCW Rotation, 1.149 Service Factor, Ball Bearing, 8.83 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron

Application

Petroleum and Gasoline, Flour/Feed Mills, Grain Elevators, Fans, Pumps, Blowers, Material Handling Equipment and Other Applications Requiring Motor

Standards

CSA LR50962 | UL E87848

Features

4-Pole, Direct On Line Starting Method, Explosion Proof AC Motors

Specifications

Amperage Rating:	8.65 to 7.82/3.91 A
Application Type:	Elevator Motors, Fan & Blower Motors
Bearing Type:	Ball
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182T
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3
Rotation:	CW/CCW
Service Factor:	1.149
Shaft Size:	1-1/8 in Dia x 2-3/4 in L
Speed:	1760 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	8.83 ft-lb
Voltage Rating:	208/230/460 VAC
