00336ES3ESA80SL WEG

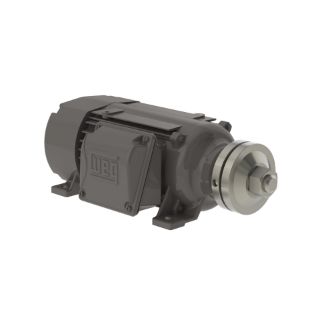

Picture of 00336ES3ESA80SL WEG
Actual Product May Vary From Image

Product Details

Manufacturer:
WEG
Manufacturer part number:
00336ES3ESA80SL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$969.00 / EA

Description

Brand Name

WEG

Type

Left Hand Thread

Alternate Supplier #

Applied Industrial Technologies - 101591258
Motion Industries - 04204832

Description

WEG Definite Purpose AC Motor, Left Hand Thread, General Purpose AC Motors Application, 3 hp, 208/230/460 VAC, 9.49 to 8.58/4.29 A, 60 Hz Frequency, 3 ph ph, 3500 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 80S Frame, 19 mm Dia Shaft, CW Rotation, 1 Service Factor, Ball Bearing, 4.44 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 18.543 in L Dimensions

Application

Saw Arbor, Circular Saws, Pendulum Saws and Polishing Machines

Standards

NEMA MG-1

Features

  • PG threaded terminal boxes
  • Low profile

Specifications

Amperage Rating:9.49 to 8.58/4.29 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Dimensions:18.543 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:80S
Frequency Rating:60 Hz
Horsepower:3 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Footed
Phase:3
Rotation:CW
Service Factor:1
Shaft Size:19 mm Dia
Speed:3500 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:4.44 ft-lb
Voltage Rating:208/230/460 VAC

Products Specifications

Brand Name
WEG
Horsepower
3 HP
Type
TEFC – Three-Phase – Left-Hand Thread
