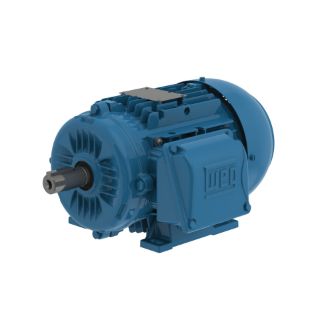

Actual Product May Vary From Image

00336ET3EAL100L-W22 WEG

Name: 00336ET3EAL100L-W22 WEG
Brand: WEG
SKU: 00336ET3EAL100L-W22 WEG
Price: 805.00 USD
Availability: OutOfStock

WEG Tru-Metric™ 00336ET3EAL100L-W22 AC Motor, Totally Enclosed Fan Cooled Enclosure, 4 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 100L Frame, 3520 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 00336ET3EAL100L-W22

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$805.00

Qty:

Product Details

Brand Name

WEG

Description

WEG Tru-Metric™ AC Motor, General Purpose AC Motors Application, IEC Metric Motors Special Features, 4 hp, 230/460 VAC, 10/5.01 A, 60 Hz Frequency, 3 ph ph, 3520 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 100L Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 5.89 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 14.803 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

IEC Metric Motors

Specifications

Amperage Rating:	10/5.01 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Dimensions:	14.803 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	100L
Frequency Rating:	60 Hz
Horsepower:	4 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.25
Speed:	3520 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	5.89 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
