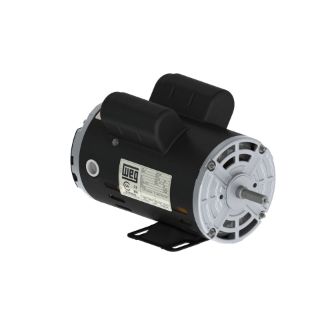

00336OS1D182T WEG

The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for severe duty use.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 3 hp, 230 VAC, 15 A, 60 Hz Frequency, 1 ph ph, 3600 rpm Speed, Open Drip-Proof Enclosure, 182T Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, 1.25 Service Factor, Ball Bearing, 4.42 ft-lb Torque, Footed Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 14.448 in L Dimensions
