004093 DOD

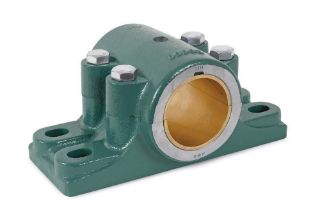

Picture of 004093 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
004093
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
$1,222.90 / EA

Description

Specifications

Base to Center Height:3.2500
Base to Center Height (Unit):INCH
Bearing Type:Journal
Bolt Diameter:0.7500
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):10.8750
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):10.1250
Bolt to Bolt (Min) (Unit):INCH
Bolt Width:2.7500
Bolt Width (Unit):INCH
Bore Length:7.0000
Bore Length (Unit):INCH
Expansion Capability:Expansion (Float)
Greasable:No
Housing Construction:Split
Housing Material:Cast Iron
Housing Type:Four-Bolt Pillow Block
Insert Material:Tin Babbitt
Lubrication:Grease
Shaft Diameter:3.5000
Shaft Diameter (Unit):INCH

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
Dodge
Shaft Diameter
3 1/2 in
Type
4 Bolt Pillow Block Ball Bearing
