004502 DOD

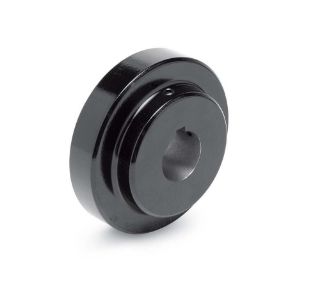

Picture of 004502 DOD

Actual Product May Vary From Image

Product Details

Manufacturer:

Manufacturer part number:

004502

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$36.04 / EA

Description

Specifications

Angular Misalignment:	1.0000
Angular Misalignment (Unit):	DEGREE
Axial Misalignment:	0.0920
Axial Misalignment (Unit):	INCH
Bore Diameter (Actual):	0.7500
Bore Diameter (Actual) (Unit):	INCH
Bore Fit:	Clearance
Bore Length:	1.3400
Bore Length (Unit):	INCH
Bore Tolerance Standard:	AGMA 9002
Coupling Component:	Flange
Coupling Size:	5
Coupling Style:	Sleeve
Coupling Type:	Elastomeric
Flange Material:	Cast Iron
Horsepower Per 100 Rat:	0.3800
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	7600
Maximum Speed (Unit):	RPM
Parallel Misalignment:	0.0150
Parallel Misalignment (Unit):	INCH
Rated Torque:	240.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bored To Size
Shaft Spacing:	Close Coupled

Resources

Tech Bulletin Installation
