004567 DOD

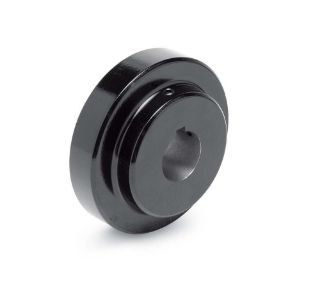

Picture of 004567 DOD

Actual Product May Vary From Image

Product Details

Manufacturer:

Manufacturer part number:

004567

CBT Inventory

1

Vendor Inventory

Loading...

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$72.07 / EA

Description

Specifications

Angular Misalignment:	1.0000
Angular Misalignment (Unit):	DEGREE
Axial Misalignment:	0.1920
Axial Misalignment (Unit):	INCH
Bore Diameter (Actual):	1.2500
Bore Diameter (Actual) (Unit):	INCH
Bore Fit:	Clearance
Bore Length:	2.0900
Bore Length (Unit):	INCH
Bore Tolerance Standard:	AGMA 9002
Coupling Component:	Flange
Coupling Size:	8
Coupling Style:	Sleeve
Coupling Type:	Elastomeric
Flange Material:	Cast Iron
Horsepower Per 100 Rat:	7.2000
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	4500
Maximum Speed (Unit):	RPM
Parallel Misalignment:	0.0200
Parallel Misalignment (Unit):	INCH
Rated Torque:	4530.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bored To Size
Shaft Spacing:	Close Coupled

Resources

Tech Bulletin Installation
