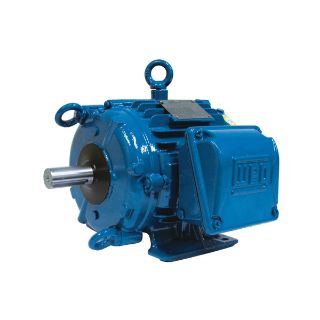

00518AT3ECT184TF1-W2 WEG

WEG's cooling tower motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG's W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.

WEG AC Motor, Continuous-Duty, Air Handling Motors, Chiller/Cooling Tower Motors Application, 5 hp, 208/230/460 VAC, 14.3 to 12.9/6.45 A, 60 Hz Frequency, 3 ph ph, 1755 rpm Speed, Totally Enclosed Air Over Enclosure, 182/4T Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 14.8 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 15.298 in L Dimensions
