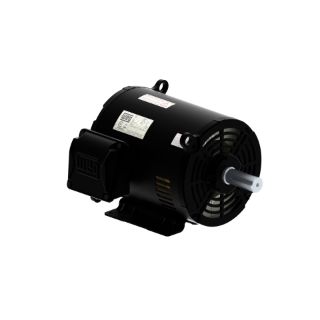

00518OT3E184T-S WEG

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 rolled steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and NEMA Premium® efficiency, these versatile motors provide torque and durability for several applications.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 5 hp, 208/230/460 VAC, 14 to 12.7/6.33 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Open Drip-Proof Enclosure, 182/4T Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 14.7 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 16.339 in L Dimensions
