00536ES1B184JP WEG

Name: 00536ES1B184JP WEG
Brand: WEG
SKU: 00536ES1B184JP WEG
Availability: OutOfStock

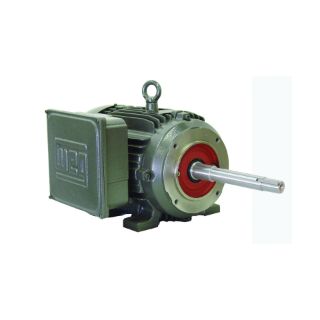

WEG 00536ES1B184JP Closed Couple Pump Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 115/208/230 VAC, 60 Hz, 1 ph Phase, 184JP Frame, 3600 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 00536ES1B184JP

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 112708813

Description

High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.

WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 5 hp, 115/208/230 VAC, 21 A, 60 Hz Frequency, 1 ph ph, 3600 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184JP Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 20.429 in L Dimensions

Standards

NEMA MG-1

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings
Gasketed conduit box

Specifications

Amperage Rating:	21 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Dimensions:	20.429 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184JP
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	1 ph
Rotation:	CW/CCW
Service Factor:	1.15
Speed:	3600 rpm
Temperature Rating:	-20 to 40 deg C
Variable Torque Speed Range:	1000:1
Voltage Rating:	115/208/230 VAC
