Actual Product May Vary From Image

00536ES3ESA80MR WEG

Name: 00536ES3ESA80MR WEG
Brand: WEG
SKU: 00536ES3ESA80MR WEG
Price: 1,160.00 USD
Availability: OutOfStock

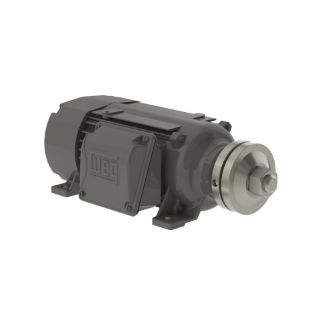

WEG 00536ES3ESA80MR Right Hand Thread Definite Purpose AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 80M Frame, 3470 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 00536ES3ESA80MR

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,160.00

Qty:

Product Details

Brand Name

WEG

Type

Right Hand Thread

Alternate Supplier #

Applied Industrial Technologies - 101610096
Motion Industries - 03918804

Description

WEG Definite Purpose AC Motor, Right Hand Thread, General Purpose AC Motors Application, 5 hp, 208/230/460 VAC, 14.7 to 13.3/6.65 A, 60 Hz Frequency, 3 ph ph, 3470 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 80M Frame, 19 mm Dia Shaft, CCW Rotation, 1 Service Factor, Ball Bearing, 7.47 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20.512 in L Dimensions

Application

Saw Arbor, Circular Saws, Pendulum Saws and Polishing Machines

Standards

NEMA MG-1

Features

PG threaded terminal boxes
Low profile

Specifications

Amperage Rating:	14.7 to 13.3/6.65 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	20.512 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	80M
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3 ph
Rotation:	CCW
Service Factor:	1
Shaft Size:	19 mm Dia
Speed:	3470 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	7.47 ft-lb
Voltage Rating:	208/230/460 VAC
