006046 DOD

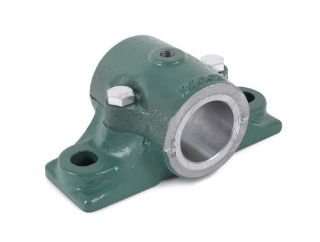

Picture of 006046 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
006046
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
$292.04 / EA

Description

Specifications

Base to Center Height:1.5000
Base to Center Height (Unit):INCH
Bearing Type:Journal
Bolt Diameter:0.5625
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):5.3750
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):5.1250
Bolt to Bolt (Min) (Unit):INCH
Bore Length:3.3750
Bore Length (Unit):INCH
Expansion Capability:Expansion (Float)
Greasable:No
Housing Construction:Split
Housing Material:Cast Iron
Housing Type:Two-Bolt Pillow Block
Insert Material:Tin Babbitt
Lubrication:Grease
Shaft Diameter:1.6875
Shaft Diameter (Unit):INCH

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
Dodge
Shaft Diameter
1 11/16 in
Type
2 Bolt Pillow Block Ball Bearing
