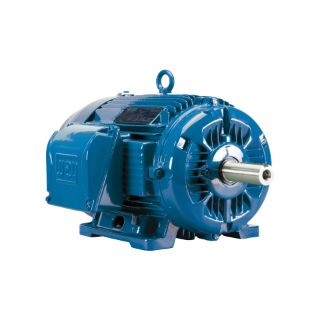

00712ET3E254T-W22 WEG

With cast iron frame, flexible mounting, solid feet and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 7.5 hp, 208/230/460 VAC, 21 to 19/9.48 A, 60 Hz Frequency, 3 ph ph, 1175 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 254/6T Frame, 1-5/8 in Dia x 4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 33.1 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 24.945 in L Dimensions
