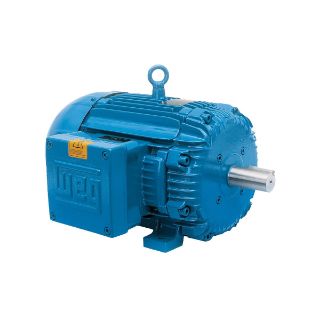

00712XT3E254T WEG

7.5HP,1200RPM,254T Frame,XT-TEFC-FOOT-MOUNT
Manufacturer: WEG
Manufacturer part number: 00712XT3E254T
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Show More Locations
$1,855.49 / EA

Product Details

Type

Foot Mount

Description

WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. CSA Approved - File LR50962 - Class I, Division 1, Groups C & D Temperature Code T3C - Class II, Division 1, Groups F & G Temperature Code T3C. Features making a difference include NPT threaded terminal box, Non-sparking fan, Thermostats, IP55 rated enclosure and VFD Service 20:1 CT; 1000:1 VT (cCSAus and excludes frames 449T & 586/7)

Specifications

ā€œCā€ Dimension (in):23.175
Enclosure:TEFC
FL Amps @ High:9.73
FL. Eff (%):91
Flange:NO
Frame:254T
Frame Material:CAST IRON
HP:7.5
kW:5.5
Mounting:Foot Mount
RPM:1200
Section:Explosion Proof, 3ph, Foot Mount
Service Factor:1.15
Voltage (V):230/460
