00718ES1C215JM WEG

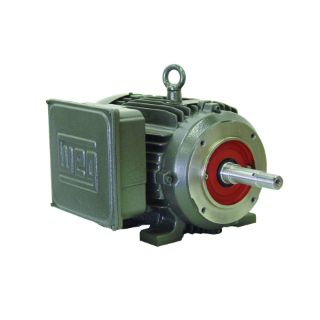

WEG 00718ES1C215JM Closed Couple Pump Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 7.5 hp, 208/230 VAC, 60 Hz, 1 ph Phase, 215JM Frame, 1730 rpm Speed, Footed Mount
Manufacturer: WEG
Manufacturer part number: 00718ES1C215JM
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 102153349
Motion Industries - 04205486

Description

High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 7.5 hp, 208/230 VAC, 35.5 to 34 A, 60 Hz Frequency, 1 ph ph, 1730 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 215JM Frame, CCW Rotation, 1.15 Service Factor, Ball Bearing, 22.5 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 20.4 in L Dimensions

Standards

NEMA MG-1

Features

  • Stainless steel nameplate laser etched with high contrast background
  • Regreasable bearings
  • Gasketed conduit box

Specifications

Amperage Rating:35.5 to 34 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Dimensions:20.4 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:215JM
Frequency Rating:60 Hz
Horsepower:7.5 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Footed
Phase:1 ph
Rotation:CCW
Service Factor:1.15
Speed:1730 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:22.5 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:208/230 VAC
