Actual Product May Vary From Image

00718ES1E215JP WEG

Name: 00718ES1E215JP WEG
Brand: WEG
SKU: 00718ES1E215JP WEG
Availability: OutOfStock

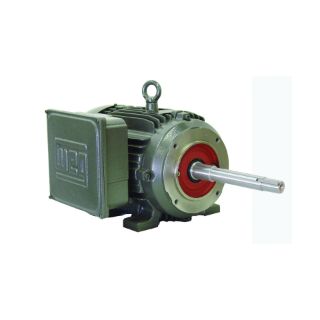

WEG 00718ES1E215JP Closed Couple Pump Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 7.5 hp, 208/230/460 VAC, 60 Hz, 1 ph Phase, 215JP Frame, 1730 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 00718ES1E215JP

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101375766
Motion Industries - 04205644

Description

High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.

WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 7.5 hp, 208/230/460 VAC, 35.5 to 34/17 A, 60 Hz Frequency, 1 ph ph, 1730 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 215JP Frame, 1.2495 in Dia x 8.13 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 22.5 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 24.272 in L Dimensions

Standards

NEMA MG-1

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings
Gasketed conduit box

Specifications

Amperage Rating:	35.5 to 34/17 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Dimensions:	24.272 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	215JP
Frequency Rating:	60 Hz
Horsepower:	7.5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	1 ph
Rotation:	CW/CCW
Service Factor:	1.15
Shaft Size:	1.2495 in Dia x 8.13 in L
Speed:	1730 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	22.5 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	208/230/460 VAC
