00718ET3E213T-S WEG

Name: 00718ET3E213T-S WEG
Brand: WEG
SKU: 00718ET3E213T-S WEG
Price: 948.00 USD
Availability: OutOfStock

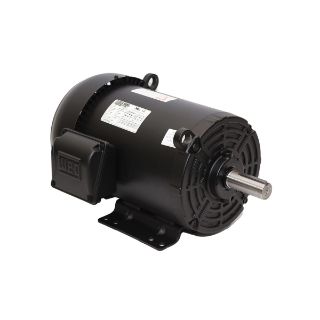

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

00718ET3E213T-S

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$948.00 / EA

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110865595
Motion Industries - 06047258

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 7.5 hp, 208/230/460 VAC, 20.1 to 18.1/9.07 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213/5T Frame, 0.375 in Dia x 3.38 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 22.0 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 18.898 in L Dimensions

Application

General Purpose Applications

Features

Aluminum endshields
Cast iron flanges for improved strength
Internal bolts, giving a clean surface to the motor
Double shielded ball bearings
Robust design
IP55 rating

Specifications

Amperage Rating:	20.1 to 18.1/9.07 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	18.898 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	213/5T
Frequency Rating:	60 Hz
Horsepower:	7.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Footed
Phase:	3
Rotation:	CW/CCW
Service Factor:	1.15
Shaft Size:	0.375 in Dia x 3.38 in L
Speed:	1770 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	22.0 ft-lb
Voltage Rating:	208/230/460 VAC
