Actual Product May Vary From Image

00718ET3E213T-W22 WEG

Name: 00718ET3E213T-W22 WEG
Brand: WEG
SKU: 00718ET3E213T-W22 WEG
Price: 1,089.00 USD
Availability: OutOfStock

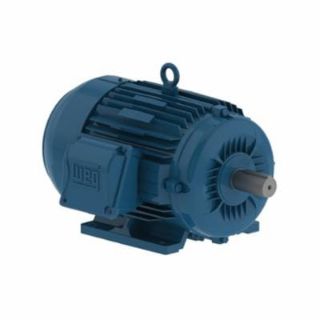

WEG 00718ET3E213T-W22 AC Motor, Totally Enclosed Fan Cooled Enclosure, 7-1/2 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 213/5T Frame, 1800 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 00718ET3E213T-W22

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,089.00

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 101527419
Motion Industries - 04516805

Description

WEG AC Motor, General Purpose AC Motors Application, 4-Pole, Direct On Line Starting Method Special Features, 7-1/2 hp, 208/230/460 VAC, 19.9 to 18.4/9.18 A, 60 Hz Frequency, 3 ph, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 213/5T Frame, 1-3/8 in Dia x 3-3/8 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 22 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron

Standards

CE | CSA Certified | UL Listed

Features

4-Pole, Direct On Line Starting Method

Specifications

Amperage Rating:	19.9 to 18.4/9.18 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	213/5T
Frequency Rating:	60 Hz
Horsepower:	7-1/2 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Number of Speeds:	1
Phase:	3
Rotation:	CW/CCW
Service Factor:	1.25
Shaft Size:	1-3/8 in Dia x 3-3/8 in L
Speed:	1800 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	22 ft-lb
Voltage Rating:	208/230/460 VAC
