Picture of 00736ET3ER213TC-W22 WEG
Actual Product May Vary From Image

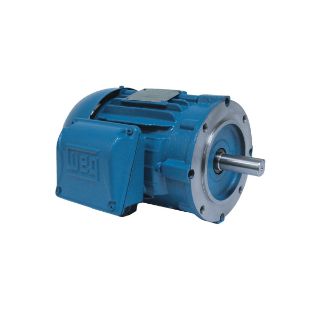

00736ET3ER213TC-W22 WEG

WEG 00736ET3ER213TC-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 7.5 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 213TC Frame, 3520 rpm Speed, C-Face Footless Mount
Manufacturer: WEG
Manufacturer part number: 00736ET3ER213TC-W22
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,212.00

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101407504
Motion Industries - 04701852

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 7.5 hp, 208/230/460 VAC, 19.4 to 17.5/8.76 A, 60 Hz Frequency, 3 ph ph, 3520 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213TC Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 11.0 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 19.399 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

  • Regreasable bearings
  • Gasketed conduit box
  • All cast iron construction, including terminal box and fan cover
  • IP55 rating
  • Corrosion proof drains

Specifications

Amperage Rating:19.4 to 17.5/8.76 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Constant Torque Speed Range:20:1
Dimensions:19.399 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:213TC
Frequency Rating:60 Hz
Horsepower:7.5 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:C-Face Footless
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.25
Speed:3520 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:11.0 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:208/230/460 VAC
