008058 DOD

Picture of 008058 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
008058
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
$84.71 / EA

Description

Specifications

Angular Misalignment:2.0000
Angular Misalignment (Unit):DEGREE
ATEX Certificate:No
Bore Diameter (Maximum):1.0000
Bore Diameter (Maximum) (Unit):INCH
Bore Diameter (Minimum):0.5000
Bore Diameter (Minimum) (Unit):INCH
Bore Length:1.0000
Bore Length (Unit):INCH
Bushing Size:1008
Bushing Type:Taper-Lock
Coupling Component:Flange
Coupling Size:2-5/8
Coupling Style:Pin
Coupling Type:Elastomeric
Flange Material:Cast Iron
Horsepower Per 100 Rat:0.2900
Horsepower Per 100 Rat (Unit):HORSEPOWER
Lubrication:None
Maximum Speed:3600
Maximum Speed (Unit):RPM
Maximum Temperature Rating:170.0000
Maximum Temperature Rating (Unit):FAHRENHEIT
Minimum Temperature Rating:-90.0000
Minimum Temperature Rating (Unit):FAHRENHEIT
Parallel Misalignment:0.0313
Parallel Misalignment (Unit):INCH
Rated Torque:180.0000
Rated Torque (Unit):INCH_POUND
Shaft Attachment:Bushed
Shaft Spacing:Close Coupled

Resources

BrochureInstallation

Customers who bought this item also bought

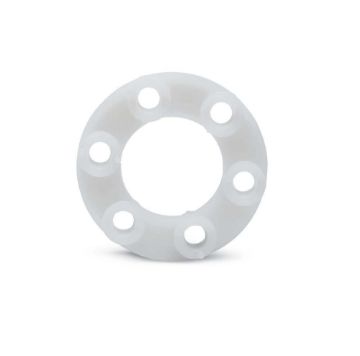

Picture of 008030 DOD

008030 DOD

MFG: Dodge
MFG#:008030
Info:2-5/8 POLY-DISC CPLG DISC
$ -.--
