01018EG3EL215T-W22 WEG

Name: 01018EG3EL215T-W22 WEG
Brand: WEG
SKU: 01018EG3EL215T-W22 WEG
Price: 1,400.00 USD
Availability: OutOfStock

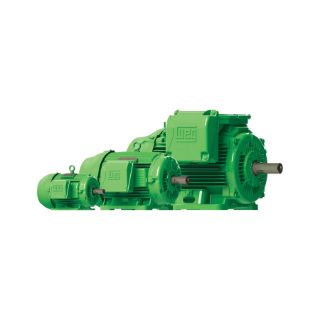

WEG 01018EG3EL215T-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 230/460 VAC, 60 Hz, 3 ph Phase, L213/5T Frame, 1765 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 01018EG3EL215T-W22

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,400.00

Qty:

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 102153981
Motion Industries - 04863587

Description

Super premium efficiency motors offer high performance with maximum energy efficiency. This motor provides high efficiency and low cost of ownership throughout the entire motor lifetime. This design maximizes performance and energy savings. WEG's W22 super premium cast iron platform has a superior cooling system and solid feet for cooler operation and minimal vibration and noise thereby extending the life of the motor.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, Severe Duty Motors Special Features, 10 hp, 230/460 VAC, 24/12 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, L213/5T Frame, 1-3/8 in Dia x 3-3/8 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 29.4 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 20.461 in L Dimensions

Application

General Purpose Applications

Standards

NEMA PremiumÂ®

Features

Severe Duty Motors

Specifications

Amperage Rating:	24/12 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Dimensions:	20.461 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	L213/5T
Frequency Rating:	60 Hz
Horsepower:	10 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Number of Speeds:	1
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.25
Shaft Size:	1-3/8 in Dia x 3-3/8 in L
Speed:	1765 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	29.4 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
