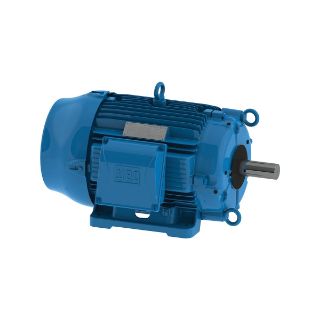

Picture of 01018ET3ECT215TF1-W2 WEG
Actual Product May Vary From Image

01018ET3ECT215TF1-W2 WEG

WEG 01018ET3ECT215TF1-W2 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 213/5T Frame, 1765 rpm Speed, Footed Mount
Manufacturer: WEG
Manufacturer part number: 01018ET3ECT215TF1-W2
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,475.00

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 112709275
Motion Industries - 04863133

Description

WEG's cooling tower motors are designed for operation in 100% humidity and the most corrosive environments. They are designed to operate in either horizontal or vertical mounting. WEG's W22 cast iron platform has a superior cooling system and solid feet for cool operation and low vibration and noise extending the life of the motor.
WEG AC Motor, Continuous-Duty, Air Handling Motors, Chiller/Cooling Tower Motors Application, 10 hp, 208/230/460 VAC, 27.4 to 24.8/12.4 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213/5T Frame, 1-3/8 in Dia x 3-3/8 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 29.4 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 19.517 in L Dimensions

Application

Cooling Tower Applications

Standards

NEMA Premium®

Features

  • Stainless steel nameplate laser etched with high contrast background
  • Double sealed bearings
  • Double impregnation and bake
  • Internally and externally epoxy painted
  • High starting torque
  • IP55 rating

Specifications

Amperage Rating:27.4 to 24.8/12.4 A
Application Type:Air Handling Motors, Chiller/Cooling Tower Motors
Bearing Type:Ball
Dimensions:19.517 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:213/5T
Frequency Rating:60 Hz
Horsepower:10 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Footed
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.25
Shaft Size:1-3/8 in Dia x 3-3/8 in L
Speed:1765 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:29.4 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:208/230/460 VAC
