01036ET3E215TC-S WEG

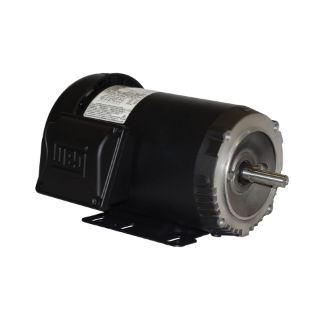

Picture of 01036ET3E215TC-S WEG
Actual Product May Vary From Image

Product Details

Manufacturer:
WEG
Manufacturer part number:
01036ET3E215TC-S
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$1,205.00 / EA

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110951395
Motion Industries - 06143435

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 10 hp, 208/230/460 VAC, 25.4 to 23/11.5 A, 60 Hz Frequency, 3 ph ph, 3530 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213-5TC Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 14.7 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 21.654 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

  • Aluminum endshields
  • Cast iron flanges for improved strength
  • Internal bolts, giving a clean surface to the motor
  • Double shielded ball bearings
  • Robust design
  • IP55 rating

Specifications

Amperage Rating:25.4 to 23/11.5 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Dimensions:21.654 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:213-5TC
Frequency Rating:60 Hz
Horsepower:10 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:C-Face Footed
Phase:3
Rotation:CW/CCW
Service Factor:1.15
Speed:3530 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:14.7 ft-lb
Voltage Rating:208/230/460 VAC

Products Specifications

Brand Name
WEG
Horsepower
10 HP
Type
TEFC – C-Face – Foot Mount
