01036ET3ESS215TC WEG

Product Details

Manufacturer:
Manufacturer part number:
01036ET3ESS215TC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$3,625.00 / EA

Description

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 101726134
Motion Industries - 04864089

Description

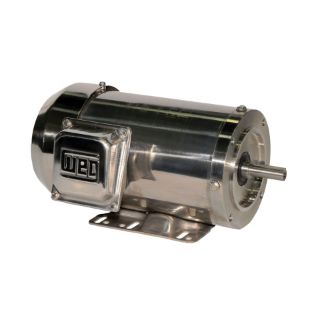

WEG Shark™ AC Motor, General Purpose AC Motors Application, Washdown Duty Motors Special Features, 10 hp, 230/460 VAC, 11.5 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 215TC Frame, 1.15 Service Factor, C-Face Footed Mounting, Insulation Class: Class F, Stainless Steel, 22 in L Dimensions

Application

Food Processing, Pharmaceutical and Other Applications

Standards

NEMA Premium®

Features

Washdown Duty Motors

Specifications

Amperage Rating:11.5 A
Application Type:General Purpose AC Motors
Dimensions:22 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:215TC
Frequency Rating:60 Hz
Horsepower:10 hp
Insulation Class:Class F
Material:Stainless Steel
Mounting Type:C-Face Footed
Phase:3
Service Factor:1.15
Speed:3600 rpm
Voltage Rating:230/460 VAC

Products Specifications

Brand Name
WEG
Horsepower
10 HP
Type
TEFC – Three-Phase – C-Face Foot Mount
