Actual Product May Vary From Image

010606 DOD

Name: 010606 DOD
Brand: Dodge
SKU: 010606 DOD
Price: 467.87 USD
Availability: InStock

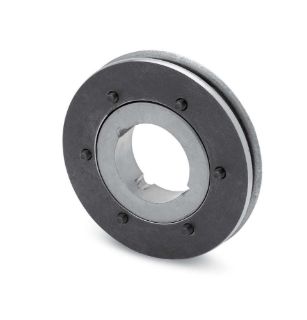

PX100 TAPER-LOCK FLG ASSY 2517

Manufacturer: Dodge

Manufacturer part number: 010606

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
2	0
Loading...

$467.87

Qty:

Product Details

Angular Misalignment:	4.0000
Angular Misalignment (Unit):	DEGREE
ATEX Certificate:	Yes
Axial Misalignment:	0.3125
Axial Misalignment (Unit):	INCH
Bore Diameter (Maximum):	2.6875
Bore Diameter (Maximum) (Unit):	INCH
Bore Diameter (Minimum):	0.5000
Bore Diameter (Minimum) (Unit):	INCH
Bore Length:	1.7500
Bore Length (Unit):	INCH
Bushing Size:	2517
Bushing Type:	Taper-Lock
Coupling Component:	Flange
Coupling Size:	PX100
Coupling Style:	Tire
Coupling Type:	Elastomeric
Flange Material:	Sintered Steel
Horsepower Per 100 Rat:	8.5800
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	2600
Maximum Speed (Unit):	RPM
Maximum Temperature Rating:	180.0000
Maximum Temperature Rating (Unit):	FAHRENHEIT
Minimum Temperature Rating:	-45.0000
Minimum Temperature Rating (Unit):	FAHRENHEIT
Parallel Misalignment:	0.1250
Parallel Misalignment (Unit):	INCH
Rated Torque:	5402.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bushed
Shaft Spacing:	Close Coupled
