011134 DOD

Name: 011134 DOD
Brand: Dodge
SKU: 011134 DOD
Price: 1,142.32 USD
Availability: InStock

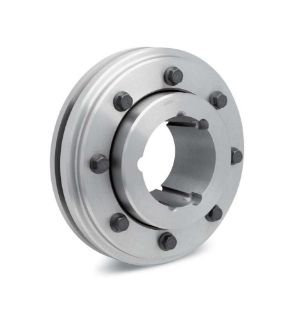

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

011134

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$1,142.32 / EA

Description

Angular Misalignment:	4.0000
Angular Misalignment (Unit):	DEGREE
ATEX Certificate:	Yes
Axial Misalignment:	0.3125
Axial Misalignment (Unit):	INCH
Bore Diameter (Maximum):	3.9375
Bore Diameter (Maximum) (Unit):	INCH
Bore Diameter (Minimum):	1.1875
Bore Diameter (Minimum) (Unit):	INCH
Bore Length:	3.5000
Bore Length (Unit):	INCH
Bushing Size:	3535
Bushing Type:	Taper-Lock
Coupling Component:	Flange
Coupling Size:	PX140
Coupling Style:	Tire
Coupling Type:	Elastomeric
Flange Material:	Cast Iron
Horsepower Per 100 Rat:	44.0000
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	1840
Maximum Speed (Unit):	RPM
Maximum Temperature Rating:	180.0000
Maximum Temperature Rating (Unit):	FAHRENHEIT
Minimum Temperature Rating:	-45.0000
Minimum Temperature Rating (Unit):	FAHRENHEIT
Parallel Misalignment:	0.1250
Parallel Misalignment (Unit):	INCH
Rated Torque:	27590.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bushed
Shaft Spacing:	Close Coupled
