Actual Product May Vary From Image

011137 DOD

Name: 011137 DOD
Brand: Dodge
SKU: 011137 DOD
Price: 1,660.17 USD
Availability: OutOfStock

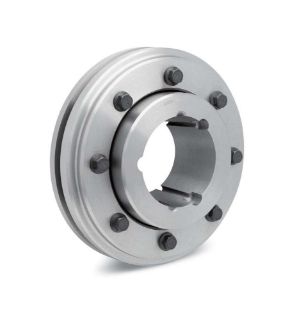

PX160H TAPER-LOCK FLG ASSY 4040

Manufacturer: Dodge

Manufacturer part number: 011137

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,660.17

Qty:

Product Details

Angular Misalignment:	4.0000
Angular Misalignment (Unit):	DEGREE
ATEX Certificate:	Yes
Axial Misalignment:	0.3125
Axial Misalignment (Unit):	INCH
Bore Diameter (Maximum):	4.4375
Bore Diameter (Maximum) (Unit):	INCH
Bore Diameter (Minimum):	1.4375
Bore Diameter (Minimum) (Unit):	INCH
Bore Length:	4.0000
Bore Length (Unit):	INCH
Bushing Size:	4040
Bushing Type:	Taper-Lock
Coupling Component:	Flange
Coupling Size:	PX160
Coupling Style:	Tire
Coupling Type:	Elastomeric
Flange Material:	Cast Iron
Horsepower Per 100 Rat:	60.0000
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	1560
Maximum Speed (Unit):	RPM
Maximum Temperature Rating:	180.0000
Maximum Temperature Rating (Unit):	FAHRENHEIT
Minimum Temperature Rating:	-45.0000
Minimum Temperature Rating (Unit):	FAHRENHEIT
Parallel Misalignment:	0.1250
Parallel Misalignment (Unit):	INCH
Rated Torque:	37800.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bushed
Shaft Spacing:	Close Coupled
