011154 DOD

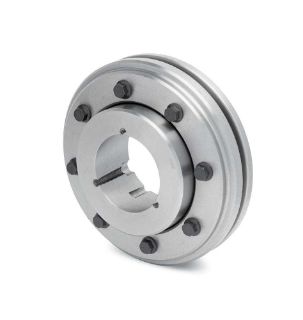

PX140F TAPER-LOCK FLG ASSY 3535
Manufacturer: Dodge
Manufacturer part number: 011154
Estimated dates are contingent upon manufacturer stock.
Please login to see accurate availability
$1,068.54

Product Details

Specifications

Angular Misalignment:4.0000
Angular Misalignment (Unit):DEGREE
ATEX Certificate:Yes
Axial Misalignment:0.3125
Axial Misalignment (Unit):INCH
Bore Diameter (Maximum):3.9375
Bore Diameter (Maximum) (Unit):INCH
Bore Diameter (Minimum):1.1875
Bore Diameter (Minimum) (Unit):INCH
Bore Length:3.5000
Bore Length (Unit):INCH
Bushing Size:3535
Bushing Type:Taper-Lock
Coupling Component:Flange
Coupling Size:PX140
Coupling Style:Tire
Coupling Type:Elastomeric
Flange Material:Cast Iron
Horsepower Per 100 Rat:44.0000
Horsepower Per 100 Rat (Unit):HORSEPOWER
Lubrication:None
Maximum Speed:1840
Maximum Speed (Unit):RPM
Maximum Temperature Rating:180.0000
Maximum Temperature Rating (Unit):FAHRENHEIT
Minimum Temperature Rating:-45.0000
Minimum Temperature Rating (Unit):FAHRENHEIT
Parallel Misalignment:0.1250
Parallel Misalignment (Unit):INCH
Rated Torque:27590.0000
Rated Torque (Unit):INCH_POUND
Shaft Attachment:Bushed
Shaft Spacing:Close Coupled
