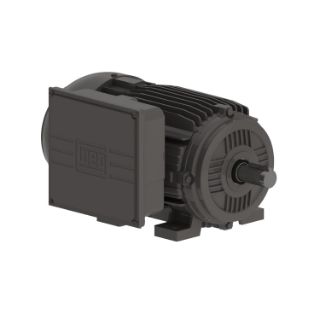

01236ES1C215T WEG

The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for severe duty use.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 12.5 hp, 208/230 VAC, 53.6 to 48.1 A, 60 Hz Frequency, 1 ph ph, 3530 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 215T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 18.3 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 19.567 in L Dimensions
