01518ET3E254T-S WEG

Name: 01518ET3E254T-S WEG
Brand: WEG
SKU: 01518ET3E254T-S WEG
Price: 1,610.00 USD
Availability: OutOfStock

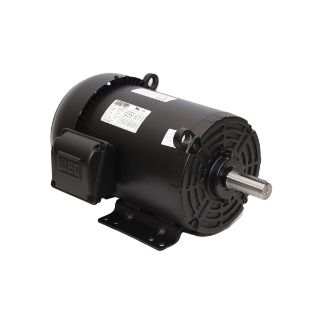

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

01518ET3E254T-S

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,610.00 / EA

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110865599
Motion Industries - 06047262

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 15 hp, 208/230/460 VAC, 40.2 to 36.4/18.2 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 254/6T Frame, 1-5/8 in Dia x 4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 43.9 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 22.559 in L Dimensions

Application

General Purpose Applications

Features

Aluminum endshields
Cast iron flanges for improved strength
Internal bolts, giving a clean surface to the motor
Double shielded ball bearings
Robust design
IP55 rating

Specifications

Amperage Rating:	40.2 to 36.4/18.2 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	22.559 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	254/6T
Frequency Rating:	60 Hz
Horsepower:	15 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Footed
Phase:	3
Rotation:	CW/CCW
Service Factor:	1.15
Shaft Size:	1-5/8 in Dia x 4 in L
Speed:	1770 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	43.9 ft-lb
Voltage Rating:	208/230/460 VAC
