Home / Motors / AC Three Phase Motors / 01518ET3E254T-SG WEG

01518ET3E254T-SG WEG

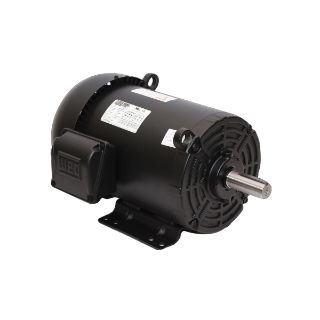

Picture of 01518ET3E254T-SG WEG
Actual Product May Vary From Image

Product Details

Manufacturer:
WEG
Manufacturer part number:
01518ET3E254T-SG
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$1,890.00 / EA

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110951440
Motion Industries - 06142905

Description

WEG AC Motor, Continuous-Duty, Air Handling Motors, General Purpose HVAC Motors Application, 15 hp, 208/230/460 VAC, 40.2 to 36.4/18.2 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 254/6T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 43.9 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 22.559 in L Dimensions

Application

HVAC Applications

Standards

NEMA MG-1

Features

  • High starting torque
  • New ventilation system for improved thermal performance
  • Robust design
  • Regreasable bearings
  • Motor frame painting system 500 hr salt spray resistant

Specifications

Amperage Rating:40.2 to 36.4/18.2 A
Application Type:Air Handling Motors, General Purpose HVAC Motors
Bearing Type:Ball
Dimensions:22.559 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:254/6T
Frequency Rating:60 Hz
Horsepower:15 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Footed
Phase:3
Rotation:CW/CCW
Service Factor:1.15
Speed:1770 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:43.9 ft-lb
Voltage Rating:208/230/460 VAC

Products Specifications

Brand Name
WEG
Horsepower
15 HP
Type
TEFC – Three-Phase – Foot Mount
