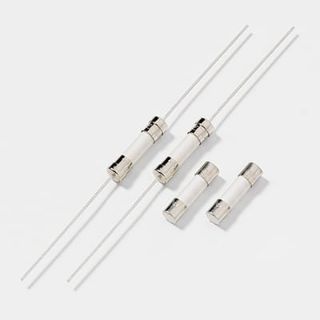

Picture of 0216.800VXP LIT
Actual Product May Vary From Image

0216.800VXP LIT

Littelfuse® 216.800P Fast Acting Cartridge Fuse, 0.8 A, 250 VAC, 1.5 kA Interrupt, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: 216.800P
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$6.76

Product Details

Brand Name

Littelfuse®

Type

Fast Acting

Description

Littelfuse® Cartridge Fuse, Fast Acting, Series: 216, 0.8 A, 250 VAC, 1.5 kA Interrupt, 0.02 s Response, Holder Mounting, Cartridge Body, Ceramic, 5 mm Dia x 20 mm L Body

Application

For used as supplementary protection in appliances or utilization equipment to provide individual protection for components or internal circuits

Standards

IEC 60127-2 | CSA File No. 29862 | CE Certified | CCC Certified | cULus File No. E10480 | VDE Approved | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Designed to international IEC standards for use globally
  • Lead-free
  • 60 min at 150%, 30 min at 210%, 0.01 to 2 s at 275%, 0.003 to 0.3 s at 400%, 0.02 s 1000% response time

Specifications

Amperage Rating:0.8 A
Body Size:5 mm Dia x 20 mm L
Body Type:Cartridge
Country of Origin:MX
Interrupt Rating:1.5 kA
Material:Ceramic
Mounting Type:Holder
Response Time:0.02 s
Series:216
Voltage Rating:250 VAC
