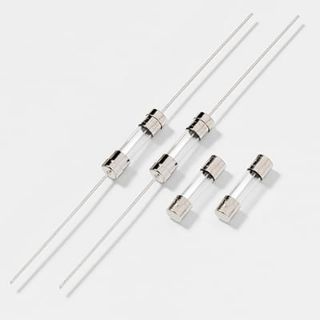

Actual Product May Vary From Image

0218.125VXP LIT

Name: 0218.125VXP LIT
Brand: Littelfuse
SKU: 0218.125VXP LIT
Price: 8.44 USD
Availability: OutOfStock

Littelfuse® POWR-GARD® Slo-Blo® 218.125P Time Delay Fuse, 1/8 A, 250 VAC, 35 A Interrupt, RK5 Class, Cartridge Body

Manufacturer: Littelfuse

Manufacturer part number: 218.125P

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$8.44

Qty:

Product Details

Brand Name

Littelfuse®

Description

For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.

Littelfuse® POWR-GARD® Slo-Blo® Time Delay Fuse, Series: 218, Non-Indicating, 1/8 A, 250 VAC, 35 A Interrupt, Class: RK5, 20 to 300 ms Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Glass, 5 mm Dia x 20 mm L Body

Application

General Purpose Applications

Standards

UL 248-12 | IEC 60127-2 | CSA Certified | CE Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Designed to international IEC standards for use globally
Meets the IEC 60127-2, sheet 3 specification for time lag fuses
Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
60 min minimum at 150%, 2 min maximum at 210%, 0.2 sec minimum and 10 sec maximum at 275%, 0.04 sec min and 3 sec maximum at 400%, 0.01 sec min and 0.3 sec maximum at 1000% response time
Nickel plated brass cap
Tin plated copper leads

Specifications

Amperage Rating:	1/8 A
Body Size:	5 mm Dia x 20 mm L
Body Type:	Cartridge
Class:	RK5
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	35 A
Material:	Glass
Mounting Type:	Holder
Response Time:	20 to 300 ms
Series:	218
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
