0220-74850 HUB

Name: 0220-74850 HUB
Brand: Hub City
SKU: 0220-74850 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0220-74850

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

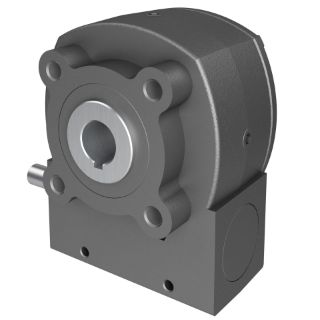

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: W300, 10:1 Gear Ratio, 2.45 hp Input, Shaft Input, Hollow Bore Output, 5/8 in Dia x 1-7/8 in L Input, 1 in Dia Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 800 in-lb Output, 2.63 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1/8 in Output Keyway, Conventional Oil Lubrication, Cast Iron, 4-3/8 in W x 6-19/32 in H

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Tapered roller bearings
Heavy duty industrial seals
Shaft mounted for direct mounting on drive shafts

Specifications

Centre Distance:	2.63 in
Country of Origin:	US
Dimensions:	4-3/8 in W x 6-19/32 in H
Gear Ratio:	10:1
Horsepower:	2.45 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia x 1-7/8 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	175 rpm
Output Size:	1 in Dia
Output Type:	Hollow Bore
Series:	W300
Torque Rating:	800 in-lb Output
