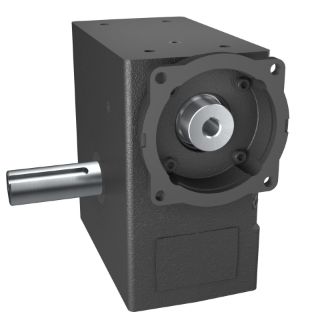

Actual Product May Vary From Image

0220-78652 HUB

Name: 0220-78652 HUB
SKU: 0220-78652 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0220-78652 380 Right Angle Single Reduction Style B Worm Gear Reducer, C-Face Quill Input, Shaft Output, 12.6 hp Input, 10:1 Gear, 175 rpm Maximum Output, 3907 in-lb Output Torque Rating

Manufacturer part number: 0220-78652

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style B

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: 380, 10:1 Gear Ratio, 12.6 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1.5 in Dia x 3.88 in L Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 3907 in-lb Output, 3-3/4 in Centre Distance, 3/16 x 3/32 Input, 3/8 x 3/16 in Output Keyway, 86.5 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting

Specifications

Centre Distance:	3-3/4 in
Efficiency:	86.5 %
Gear Ratio:	10:1
Horsepower:	12.6 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	175 rpm
Output Size:	1.5 in Dia x 3.88 in L
Output Type:	Shaft
Series:	380
Torque Rating:	3907 in-lb Output
