0220-78733 HUB

Name: 0220-78733 HUB
Brand: Hub City
SKU: 0220-78733 HUB
Availability: OutOfStock

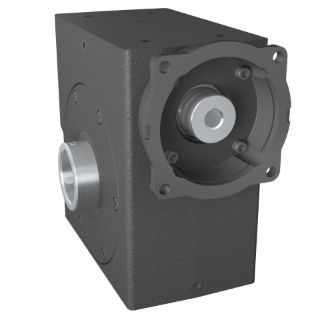

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0220-78733

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 380, 15:1 Gear Ratio, 8.87 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 1.438 in Dia Output, 117 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 3993 in-lb Output, 3-3/4 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 83.3 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7.56 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting

Specifications

Centre Distance:	3-3/4 in
Dimensions:	7.56 in W
Efficiency:	83.3 %
Gear Ratio:	15:1
Horsepower:	8.87 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	117 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Series:	380
Torque Rating:	3993 in-lb Output
