0220-78783 HUB

Name: 0220-78783 HUB
Brand: Hub City
SKU: 0220-78783 HUB
Availability: OutOfStock

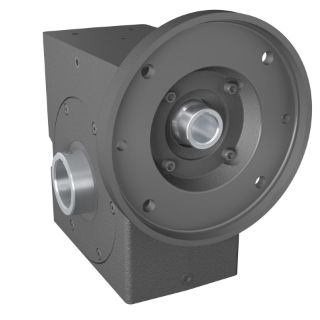

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0220-78783

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 380, 30:1 Gear Ratio, 5 hp Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 in Dia Input, 2 in Dia Output, 58.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4063 in-lb Output, 3-3/4 in Centre Distance, 1/4 x 1/8 in Input, 1/2 x 1/4 in Output Keyway, 75.4 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7.56 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting

Specifications

Centre Distance:	3-3/4 in
Country of Origin:	US
Dimensions:	7.56 in W
Efficiency:	75.4 %
Gear Ratio:	30:1
Horsepower:	5 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	58.3 rpm
Output Size:	2 in Dia
Output Type:	Hollow Bore
Series:	380
Torque Rating:	4063 in-lb Output
