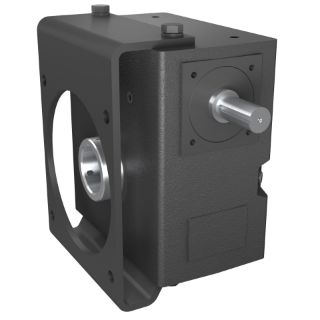

Picture of 0220-85228 HUB
Actual Product May Vary From Image

0220-85228 HUB

Hub City® PowerCubeX® 0220-85228 380 Right Angle Single Reduction Style L Worm Gear Reducer With Side Mounting Flange, Shaft Input, Hollow Bore Output, 12.6 hp Input, 10:1 Gear, 175 rpm Maximum Output, 3907 in-lb Output Torque Rating
Manufacturer part number: 0220-85228
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: 380, 10:1 Gear Ratio, 12.6 hp Input, Shaft Input, Hollow Bore Output, 1 in Dia x 2.48 in L Input, 1.938 in Dia Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 3907 in-lb Output, 3-3/4 in Centre Distance, 1/4 x 1/8 in Input, 1/2 x 1/4 in Output Keyway, 86.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 8.28 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and increased efficiency
  • Alloy shafting

Specifications

Centre Distance:3-3/4 in
Dimensions:8.28 in W
Efficiency:86.5 %
Gear Ratio:10:1
Horsepower:12.6 hp Input
Input Maximum Speed:1750 rpm
Input Size:1 in Dia x 2.48 in L
Input Type:Shaft
Keyway Size:1/4 x 1/8 in Input, 1/2 x 1/4 in Output
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:175 rpm
Output Size:1.938 in Dia
Output Type:Hollow Bore
Series:380
Torque Rating:3907 in-lb Output
