0223 IDE

Name: 0223 IDE
Brand: Ideal Industries
SKU: 0223 IDE
Availability: OutOfStock

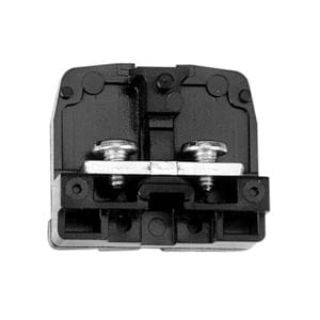

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

0223

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

IDEAL®

Type

Heavy Duty

Description

IDEAL® Terminal Block, Heavy Duty, Series: 200, 600 VAC, 65 A, 18 to 6 AWG Wire, 1/2 in Wire Strip Length, Channel Mount, Tubular Clamp, 150 deg C, Phenolic, 3.06 in L x 1.47 in W x 1.63 in H

Standards

CSA LR25557/E63810

Features

1/4 to 28 slotted headless screw type
Copper/copper alloy contact material
Steel plated screw material
7000 VAC 60 Hz breakdown voltage
300 V/mil thickness dielectric strength
0.49 to 0.59 UL high voltage arc testing (in/min)
45% water absorption (24 hr % weight gain)
94V-1 flammability
Resistant to aromatic hydrocarbons, strong alkalies chemical resistance
2.7 x 10^8 radiation resistance (ergs g-1 C)
Sturdy block accepts single wire or combinations up to 4 AWG solid or stranded
122 circuits per 6 ft length
Three contact styles conservatively rated to 35 to 85 A
Only one end section needed per block assembly
Readily identifiable circuits - mark directly on painted marking surface or use removable marking strip
Sections snap-fit with nylon heavy duty, intermediate heavy duty and fuse blocks

Specifications

Amperage Rating:	65 A
Connection Type:	Tubular Clamp
Country of Origin:	MX
Dimensions:	3.06 in L x 1.47 in W x 1.63 in H
Material:	Phenolic
Mounting Type:	Channel
Series:	200
Temperature Rating:	150 deg C
Voltage Rating:	600 VAC
Wire Size:	18 to 6 AWG
Wire Strip Length:	1/2 in
