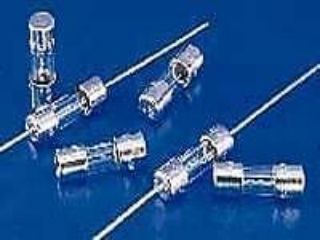

Picture of 0225003.VXP LIT
Actual Product May Vary From Image

0225003.VXP LIT

Littelfuse® POWR-GARD® 225003P Fast Acting Cartridge Fuse, 3 A, 250 VAC, 100 A Interrupt, Class: J, Cylindrical Body
Manufacturer: Littelfuse
Manufacturer part number: 225003P
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2.82

Product Details

Brand Name

Littelfuse®

Type

Fast Acting

Description

The 2AG fast acting fuses are available in cartridge form or with axial leads. 2AG fuses provide the same performance characteristics as their 3AG counterpart, while occupying one-third the space. Sleeved fuses are available.
Littelfuse® POWR-GARD® Cartridge Fuse, Fast Acting, Series: 225, Non-Indicating, 3 A, 250 VAC, 100 A Interrupt, Class: J, Holder Mounting, Cylindrical Body, Glass, 5 mm Dia x 15 mm L Body

Standards

UL 248-8 | CSA Certified | CE Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
  • Glass body, nickel plated brass end cap
  • -55 to125 deg C operating temperature
  • Lead-free
  • 4 hrs minimum at 100%, 1 hr maximum at 135%, 1 sec maximum at 200% response time

Specifications

Amperage Rating:3 A
Body Size:5 mm Dia x 15 mm L
Body Type:Cylindrical
Class:J
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:100 A
Material:Glass
Mounting Type:Holder
Series:225
Voltage Rating:250 VAC
